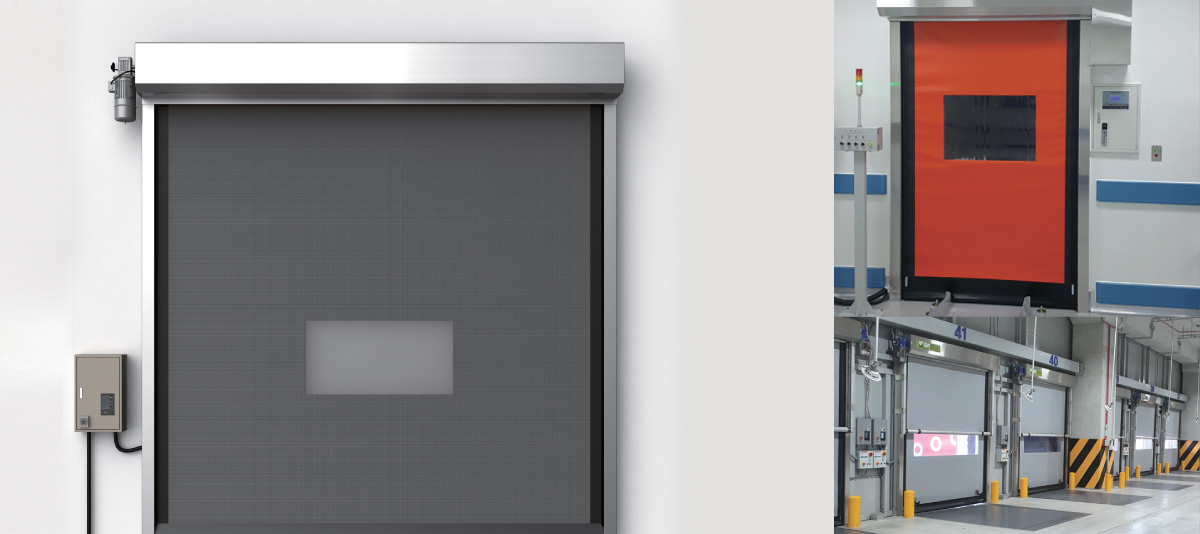

Semi Auto Repairing Type Speed Door
Feature
- Innovation
It is a new concept speed door developed by combining advantages of auto repairing type and economy type. - Light
Light weight and excellent response speed. - Applicability
It is a type suitable for conveyor applications. It does not interfere with moving objects and can be used in small spaces.
-
Product Specifications
| Category | Specifications |
|---|---|
| Door Curtain | Soft PVC + Fabric 0.9T - transparent window : PVC transparent 2.0T Flexible PVC |
| Curtain Color | Orange, Gray, Blue |
| Motor | Motor (0.75~1.5Kw) |
| Door Rail | AL extrudate film processing |
| Door Box Cover | Stainless Steel HL 1.0T |
| Open/Shut speed | Open - 1.5~2.5m/sec variable Close 一 1.5~2.5m/sec variable |
| Detection Method | Loop, Remote Control, Radar, Infrared, pull switch, etc. are available for selection |
-
Sheet Comparison
| Thickness | 0.9mm | 2.0mm |
|---|---|---|
| Flame Resistance | Grade 1 | None |
| Advantages | Softness and degree of utilization | Less creasing |
| Disadvantages | Can be damaged by sharp objects | Hardens in low temperatures |
| Weight | 1kg/㎡ | 2kg/㎡ |
