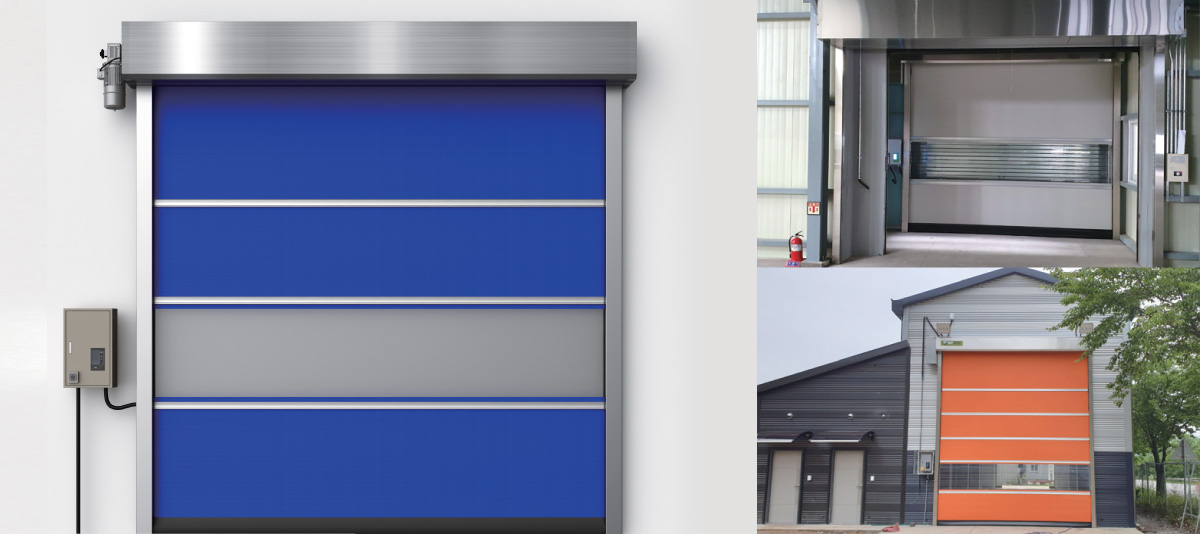

Economy Type Speed Door
Feature
- Economics
Robust and economical with basic speed door. - Openness
There is no difficulty in external confirmation by application of window. - Smoothness
Wind-bar work naturally with curves that fit the radius of rotation, not with pipes or flat wind-bar. - Applicability
Wind-bar can be used to separate the door-sheet or to add additional windows and net.
-
Product Specifications
| Category | Specifications |
|---|---|
| Door Curtain | Soft PVC + Fabric 0.9T - transparent window: PVC transparent 2.0T Flexible PVC |
| Curtain Color | Orange, Gray, Blue |
| Motor | Motor (0.75~2.2Kw) |
| Door Rail | AL extrudate + UHMWPE |
| Door Box Cover | Stainless Steel HL 1.0T |
| Open/Shut speed | Open - 1.5~2.5m/sec variable Close 一 1.5~2.5m/sec variable |
| Detection method | Loop, Remote Control, Radar, Infrared, pull switch, etc. are available for selection |
-
Sheet comparison
| Thickness | 0.9mm | 2.0mm |
|---|---|---|
| Flame resistance | Grade 1 | None |
| Advantages | Softness and degree of utilization | Less creasing |
| Disadvantages | Can be damaged by sharp objects | Hardens in low temperatures |
| Weight | 1kg/㎡ | 2kg/㎡ |
