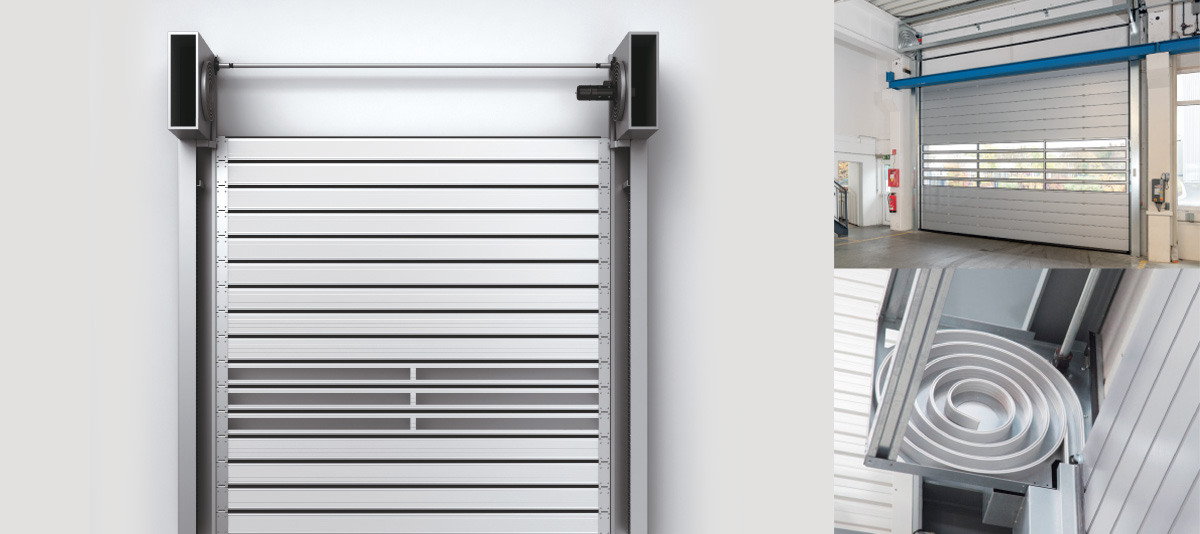

Spiral Door

Feature

The vertically raised panel is stored in a helical rail extension, and is operated with a counterbalance by a motor and a spring, so it boasts a stable and fast speed.
A rubber seal is installed between the 45T panels to increase the heat insulation and airtightness, and the double raHs are externally beautiful and take optimal effect.

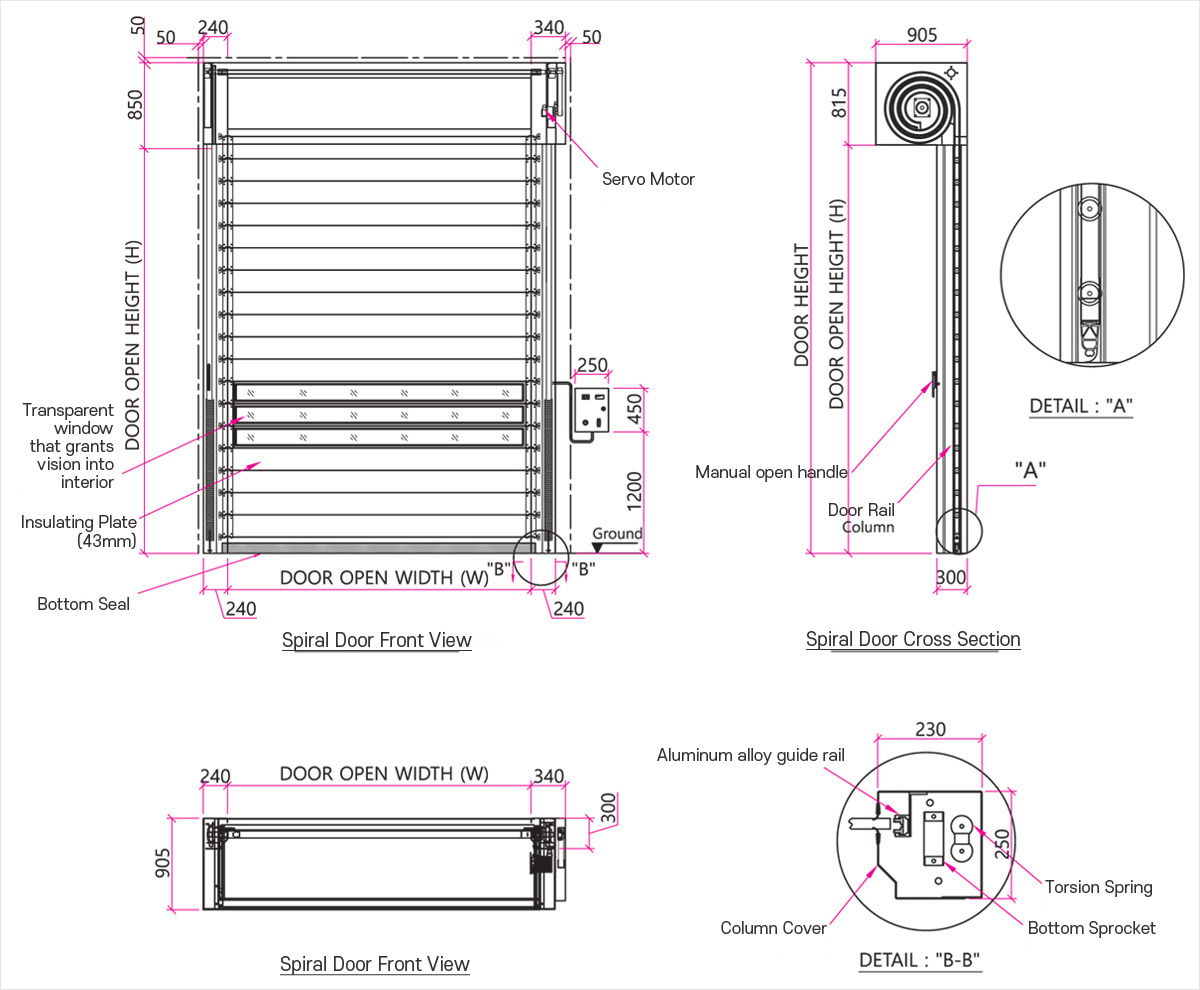

Product Blueprint

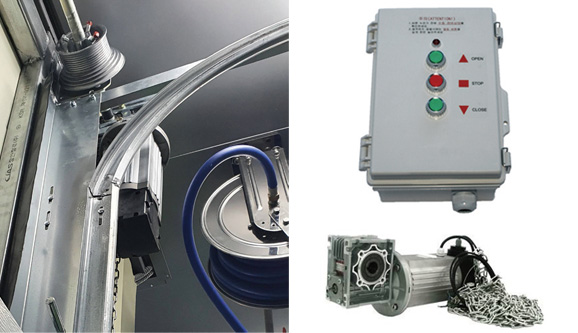

Controller & Motor

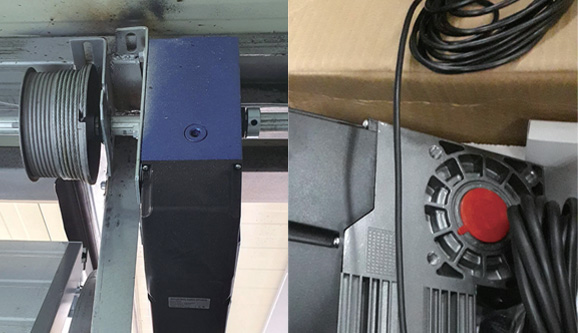

This is a motor that has been modified to fit the overhead door of a BLDC motor. It has a high output even though it is lightweight, but it may cause position errors or other errors.
It is a motor that has been modified to suit an overhead door with a 3-phase motor. It is produced considering the easy operation method and the convenience of domestic doors, but it is expensive in terms of price.

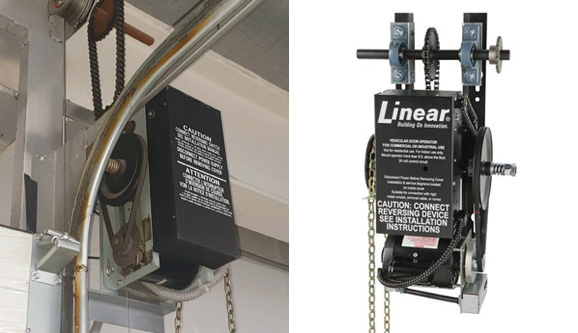

It is a motor that combines a DC motor with a chain-type reduction device, and has a robust and easy operation method, and can be driven without separate controller.

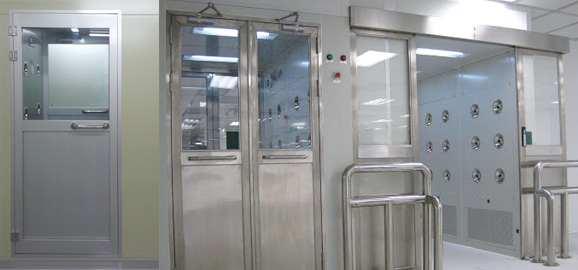

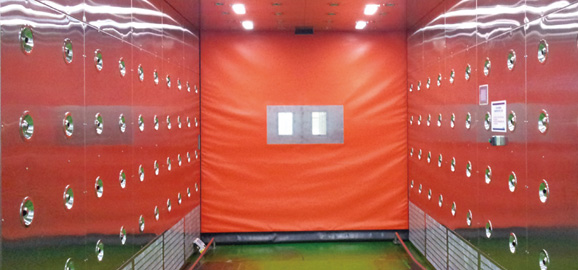

Sanitary Equipment

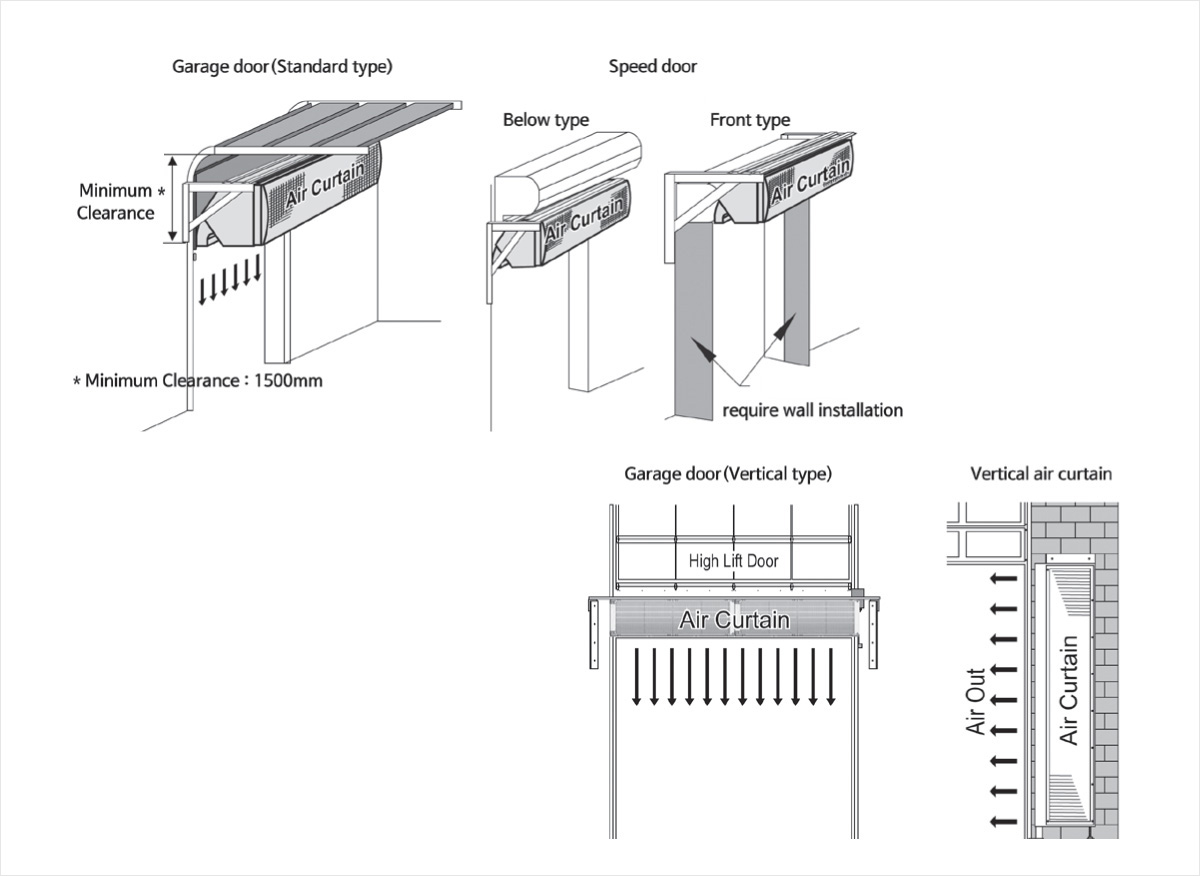

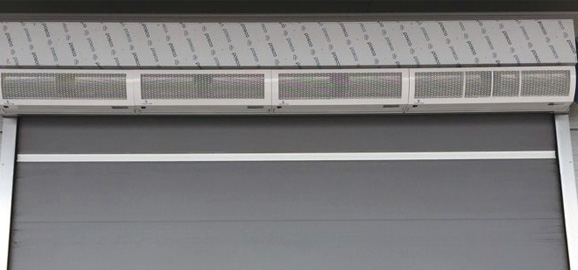

Air Curtain Blueprint

Product Specifications ※ You can check by moving the scroll left or right.

Type	Size			Rated Voltage	Electricity consumption (W)	Air Flow (CMM)		Air Speed (m/sec)		Noise (dB)
Type	L	H	W	Rated Voltage	Electricity consumption (W)	Strong	Weak	Strong	Weak	Strong	Weak
General	900	220	185	200V / 60Hz / 1Ø	180	28	23	12	9	62	54
	1000	220	185	200V / 60Hz / 1Ø	185	30	25	12	9	63	55
	1200	220	185	200V / 60Hz / 1Ø	210	34	28	12	9	65	57
	1500	220	185	200V / 60Hz / 1Ø	270	44	38	12	9	67	59
General Industrial	900	265	250	200V / 60Hz / 1Ø	430	40		17-13		65
	1000	265	250	200V / 60Hz / 1Ø	485	45		17-13		65
	1200	265	250	200V / 60Hz / 1Ø	570	56		17-13		67
	1000	265	250	200V~380V / 3 Phase	150	45		17-13		65
	1200	265	250	200V~380V / 3 Phase	181	56		17-13		67
Special Industrial	1000	300	295	200V~380V / 3 phase, 440V / 3 phase	1.5	80		32-30		78
Special Industrial	1200	300	295	200V~380V / 3 phase, 440V / 3 phase	1.5	84		32-30		80
